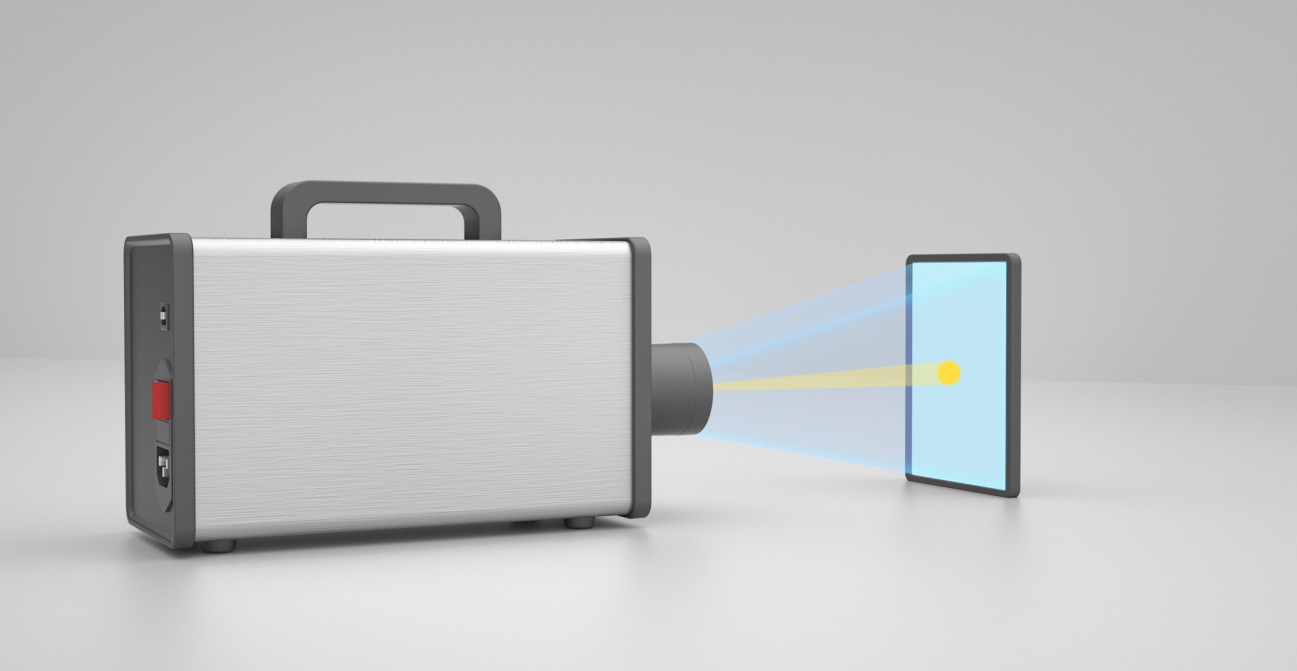

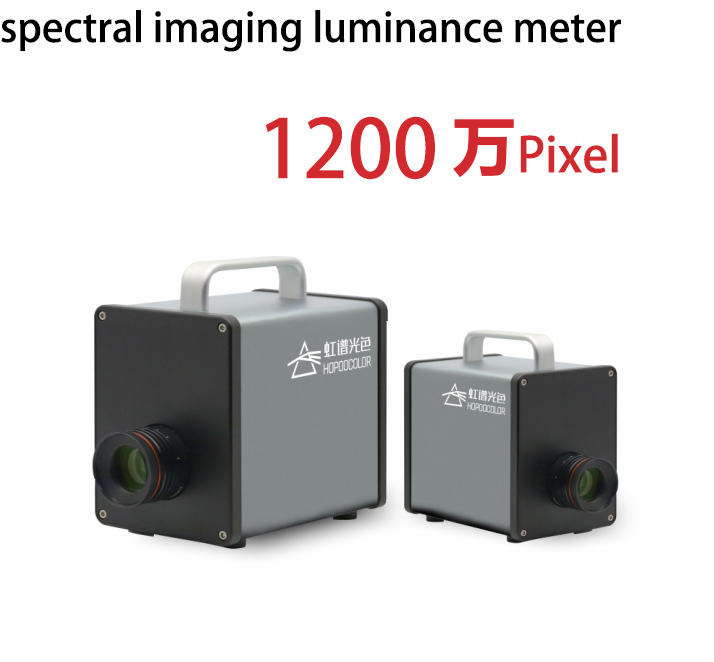

SPCX1200 spectral imaging luminance meter
The SPCX-1200 spectral imaging luminance meter adoptsa specia measurement method,central spectral imagingwhich can test the color temperature, spectrum, wavelengthcolor coordinates, brightness, radiance and other parametersin the center of products such as liquid crystal displays, lampsbuttons，characters, etc.lt also for brightness and brightnessuniformity test.
The SPCX-1200 spectral imaging luminance meter adoptsa specia measurement method,central spectral imagingwhich can test the color temperature, spectrum, wavelengthcolor coordinates, brightness, radiance and other parametersin the center of products such as liquid crystal displays, lampsbuttons，characters, etc.lt also for brightness and brightnessuniformity test.
Wavelength range: 380-780nm Integration time: 35us~10S
Spectral Width: 2nm Luminance range: 0.01 cd/m2 - 100k cd/m2
Wavelength accuracy: 0.5nm Luminance error: 5%
Spectral Luminance range:1cd/m2 - 200k cd/m2 Luminance Repeatability: 0.8%
Imaging Resolution:4096x3000(SPCX-1200) Test distance: 250mm to Far
Wavelength respond range: 380-780nm USBinterface: USB 3.0
Lens Field of View:Horizontal15.6°，Vertical 13.5° Device Dimension: 245x100x130mm
